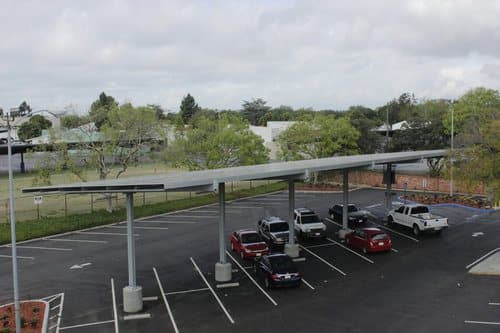

TITAN. Two rows of parking nose to nose.

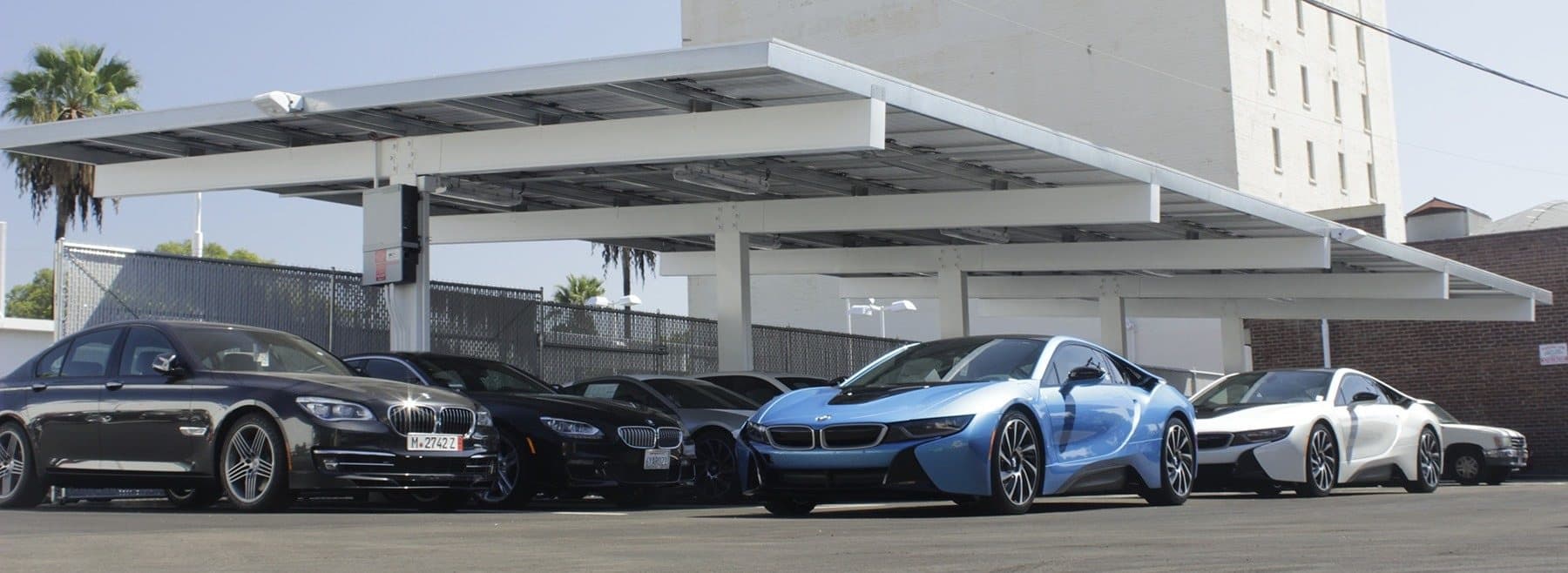

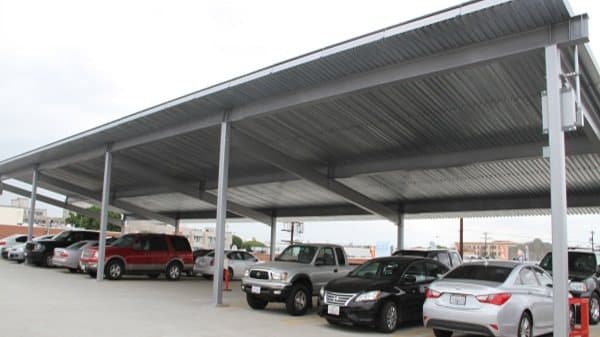

The TITAN carries the array over a double row from a single central column line, so one structure shades four spaces and the drive aisles on both sides stay open. It is the most efficient geometry per square foot of canopy and the usual choice for the interior rows of a large lot.

Site Evaluation All solar carports

At a glance

TITAN: t-shape, double column, double cantilever.

System: TITAN
Geometry: T-shape, double column, double cantilever
Covers: Two rows of parking nose to nose, four spaces per bay, repeatable side by side
Steel: 10 ga galvanized box steel, or HSS A36 (primed, galvanized, or hot-dip)
Tilt: 0°, 5°, or 10°
Clearance: 8 ft 6 in to 15 ft
Foundations: Caisson or spread footing, in-ground or on a parking structure

Best for

Interior double rows of large surface lots
Retail centers, campuses, and public facilities
Fleet yards and transit facilities
Maximum array area per column

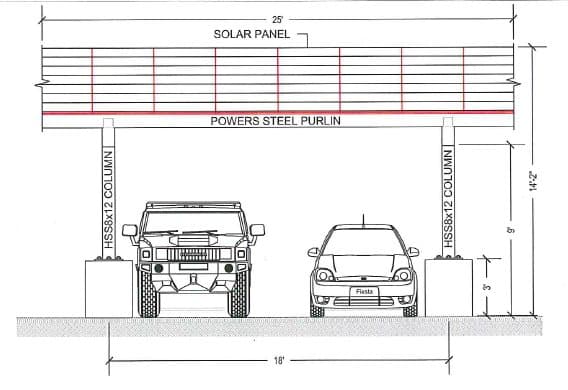

Dimensioned diagram of a T-cantilever carport over two rows of parking — Dimensioned bay, manufacturer diagram

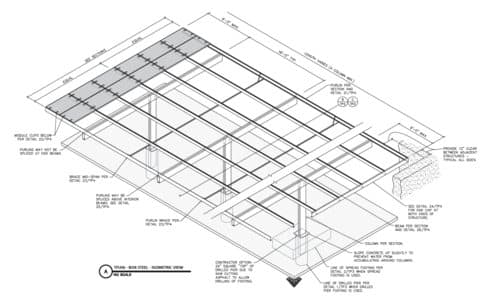

Isometric drawing of a T-cantilever carport system — Isometric, manufacturer drawing

Specifications

Manufacturer-published values for both steel systems.

Project engineering is site-specific: wind exposure, seismic category, soil, and module selection set the final member sizes and footing design.

Galvanized box steel system

Columns: 10 gauge galvanized box steel
Beams: 10 gauge galvanized box steel
Purlins: Galvanized or plain steel, slide-in solar purlins
Finish: G90 galvanized, no painting required
Tilt: 0° or 10° (5° available)
Connections: Bolted, no field welding, no welding inspections

HSS structural steel system

Columns: HSS, ASTM A36 grade
Beams: HSS, ASTM A36 grade
Purlins: 16 gauge AISI cold-rolled G90 galvanized steel
Finish: Primed, hot-dip galvanized, or standard galvanized
Tilt: Fixed slope up to 10°
Connections: Bolted, direct-tension indicators

Common to both systems

Wind: Modular designs rated to 110 mph
Code basis: ASCE 7 wind and seismic loads, engineered per jurisdiction
Clearance: 8 ft 6 in to 15 ft under the beam
Foundations: Reinforced concrete caisson or spread footing, 2,500 psi minimum, all soil types
Mounting: In-ground lots or on parking structures
Modules: Compatible with any framed PV module
Listing: UL 2703 listed racking system
Engineering: Complete engineering resources and pre-stamped certified letters; designs available in all 50 states
Warranty: Manufacturer limited warranty on the structure, with a design life beyond 20 years
